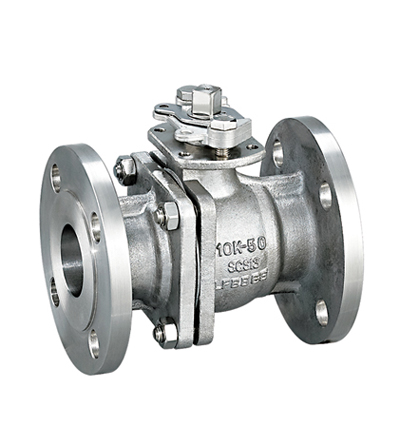

- Q41F美標法蘭球閥產品介紹
| Q41F美標法蘭球閥原理作用： |
| Q41F美標法蘭球閥性能特點： |
②防靜電裝置：當操作閥門時，由于球體和聚四氟乙烯等非金屬材料閥座之間摩擦，會產生靜電電荷并聚積在球體行。為防止產生靜電火花，特在閥門上設置防靜電裝置，把產生的靜電導出；
③防火結構：本公司浮動球閥閥座采用獨特結構，當發生火災時，非金屬密封面材料燒毀時，金屬環利用彈簧的彈力推動閥座與球體吻合密封，從而阻止火勢蔓延和介質外流；
④中部法蘭無外漏結構：閥體與左體的連接部位是靠墊片密封，為防止由于火災、高溫或震動等因素引起的該處密封泄露，特設計為閥體與左體金屬金屬接觸，形成止口法蘭，保證無外漏；
⑤自動泄壓結構：當滯留在閥門中腔的介質由于管道系統壓力或介質溫度等因素引起的變化，從而出現中腔壓力異常升高時，中腔介質能依靠本身的推力推動閥座而自動泄壓，從而確保閥門的安全。
| Q41F美標法蘭球閥技術參數： |
| 設計標準 | AP16D | ANSI B16.34 |
| 法蘭連接結構長度 | AP16D | ANSI B16.10 |
| 結構長度(焊接) | AP16D | ANSI B16.10 |
| 連接法蘭 | ANSI B16.5、B16.47 | |
| 對焊端 | ANSI B16.25 | |
| 試驗和檢驗 | AP16D | AP1598 |
| 美標法蘭球閥Q41F部件材質： |
| 名稱 | WCB類 | CF8類 | CF3類 | CF8M類 | CF3M類 | |
| 閥體左體 | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M | |
| 球體 | B2-B8 | A105-1025 | A182-F304L | A182-F304L | A132-F316 | A182-F316L |
| B8以上 | A216-WCB | A351-CF8M | A351-CF3 | A351-CF8M | A351-CF3M | |
| 閥桿 | A182-F6a | A182-F304 | A182-F304L | A182-F336 | A182-F316L | |
| 閥座 | PTFE/增強PTFE/NYLIN PTFE/Reinforced PTFE/Nyion | |||||
| 閥座支承圈 | A105-1025 | A182-F304 | A182-F304L | A182-F316 | A182-F316L | |
| 彈簧 | 3yc-7/17-49H | |||||
| O形圈 | NBR | 氟橡膠 | ||||
| 螺柱 | A193-B7 | A193-B8 | ||||
| 螺母 | A194-2H | A194-8 | ||||

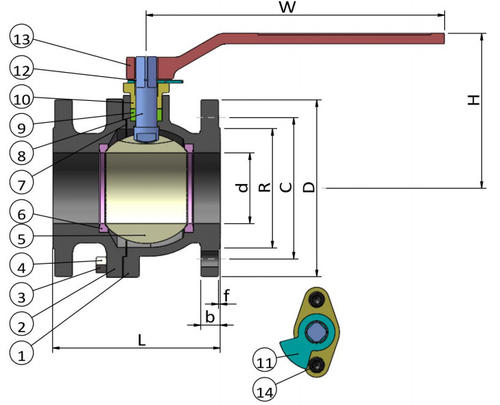

| Q41F美標法蘭球閥外形尺寸： |
CLASS 150 結構尺寸
| DN(In) | ΦD | L | ΦE | ΦB | ΦC | T | N-Φh | H | H1 | W | M | P | A1 | A2 |
| 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 4-16 | 48.0 | 79 | 135 | 9.0 | 9.0 | 6.0 | 6.0 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 4-16 | 53.0 | 84 | 135 | 9.0 | 9.0 | 6.0 | 6.0 |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 4-16 | 64.0 | 95 | 170 | 11.0 | 11.0 | 6.0 | 7.0 |
| 1-1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 4-16 | 71.0 | 103 | 170 | 11.0 | 11.0 | 6.0 | 7.0 |
| 1-1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 4-16 | 76.0 | 111 | 200 | 14.0 | 14.0 | 7.0 | 9.0 |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 4-19 | 85.0 | 120 | 200 | 14.0 | 14.0 | 7.0 | 9.0 |
| 2-1/2" | 64 | 190 | 178 | 139.5 | 105 | 18 | 4-19 | 104.0 | 153 | 300 | 17.0 | 17.0 | 9.0 | 11.0 |
| 3" | 76 | 203 | 190 | 152.5 | 127 | 19 | 4-19 | 114.0 | 163 | 300 | 17.0 | 17.0 | 9.0 | 11.0 |
| 4" | 102 | 229 | 229 | 190.5 | 157 | 24 | 8-19 | 140.0 | 182 | 400 | 22.0 | 22.0 | non | 11.0 |
| 5" | 127 | 356 | 254 | 216 | 186 | 24 | 8-22 | 183.0 | 260 | 500 | 27.0 | 27.0 | 14.0 | non |
| 6" | 152 | 394 | 279 | 241.5 | 216 | 26 | 8-22 | 202.0 | 280 | 800 | 27.0 | 27.0 | 14.0 | non |
| 8" | 203 | 457 | 343 | 298.5 | 270 | 29 | 8-22 | 253.0 | 1100 | 27.0 | 27.0 | 14.0 | non |
| DN(In) | ΦD | L | ΦE | ΦB | ΦC | T | N-Φh | H | H1 | W | M | P | A1 | A2 |
| 1/2" | 13 | 140 | 95 | 66.5 | 35 | 15 | 4-16 | 48.0 | 79 | 135 | 9.0 | 9.0 | 6.0 | 6.0 |
| 3/4" | 19 | 152 | 117 | 82.5 | 43 | 16 | 4-19 | 53.0 | 84 | 135 | 9.0 | 9.0 | 6.0 | 6.0 |
| 1" | 25 | 165 | 124 | 89 | 51 | 18 | 4-19 | 64.0 | 95 | 170 | 11.0 | 11.0 | 6.0 | 7.0 |
| 1-1/4" | 32 | 178 | 133 | 98.5 | 64 | 19 | 4-19 | 71.0 | 103 | 170 | 11.0 | 11.0 | 6.0 | 7.0 |
| 1-1/2" | 38 | 190 | 156 | 114.5 | 73 | 21 | 4-22 | 76.0 | 111 | 200 | 14.0 | 14.0 | 7.0 | 9.0 |
| 2" | 51 | 216 | 165 | 127 | 92 | 23 | 8-19 | 85.0 | 120 | 200 | 14.0 | 14.0 | 7.0 | 9.0 |
| 2-1/2" | 64 | 241 | 190 | 149 | 105 | 26 | 8-22 | 104.0 | 153 | 300 | 17.0 | 17.0 | 9.0 | 11.0 |
| 3" | 76 | 283 | 210 | 168.5 | 127 | 29 | 8-22 | 114.0 | 163 | 300 | 17.0 | 17.0 | 9.0 | 11.0 |
| 4" | 102 | 305 | 254 | 200 | 157 | 32 | 8-22 | 140.0 | 182 | 400 | 22.0 | 22.0 | non | 11.0 |
| 5" | 127 | 381 | 279 | 235 | 186 | 35 | 8-22 | 183.0 | 260 | 500 | 27.0 | 27.0 | 14.0 | non |
| 6" | 152 | 403 | 318 | 270 | 216 | 37 | 12-22 | 202.0 | 280 | 800 | 27.0 | 27.0 | 14.0 | non |
| 8" | 203 | 502 | 381 | 330 | 270 | 42 | 12-25 | 253.0 | 1100 | 27.0 | 27.0 | 14.0 | non |
